Pixy2 + Mounting Hardware Parts

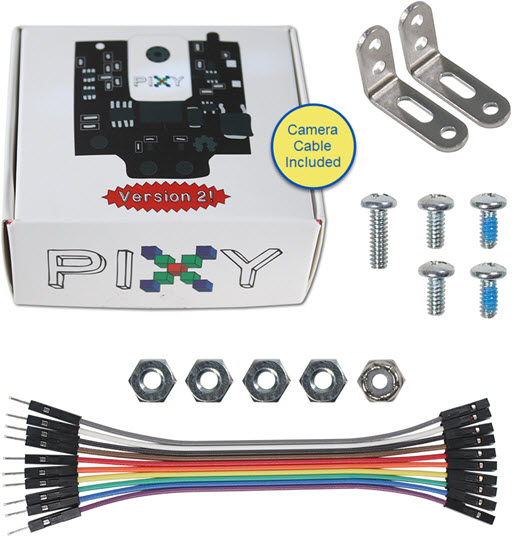

The Pixy2 CMUcam w/ Cable + Mounting Hardware kit comes with the following parts. Make sure you have everything:
(1) – Pixy2 Camera with ribbon cable (in camera box)
(1) – Screw, #4-40 x 3/8″ panhead (#700-00002)
(4) – Screw, #4-40 x 1/4″, panhead (#700-00028)
(4) – Nut, #4-40 (#700-00003)
(1) – Locknut, #4-40, 1/4″ (#700-00024)
(10 wires) – Jumper wires, MF, 100 mm (#800-00063)

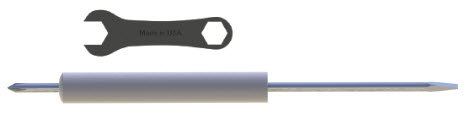

From your Shield-Bot kit, you will also need a Parallax screwdriver (#700-00064) or other #1 Philips screwdriver, and the Parallax Combination Wrench (#713-00007) or other #4 hex wrench.
