Build it: Attach the HUSKYLENS
In this step, you will mount the HUSKYLENS module onto the cyber:bot Robot.
Parts:
(1) HUSKYLENS
(1) Mounting bracket
(1) Heightening Bracket
(6) Screws (M3)
(2) Nuts (M3)
(1) cyber:bot Robot – assembled and tested
Assembly

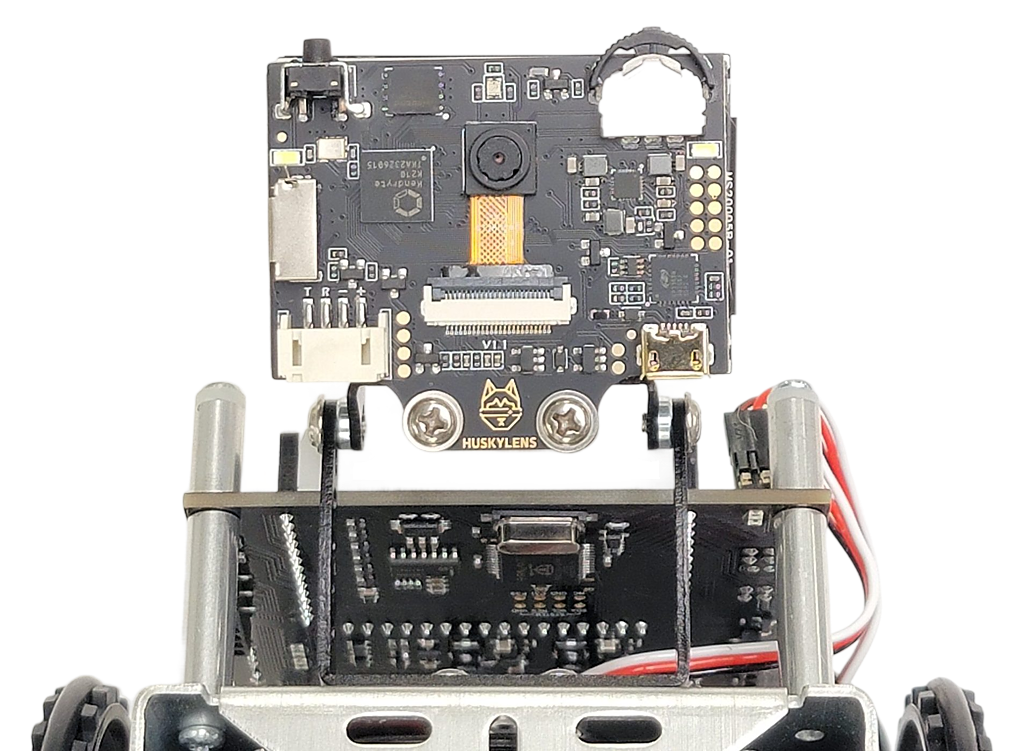

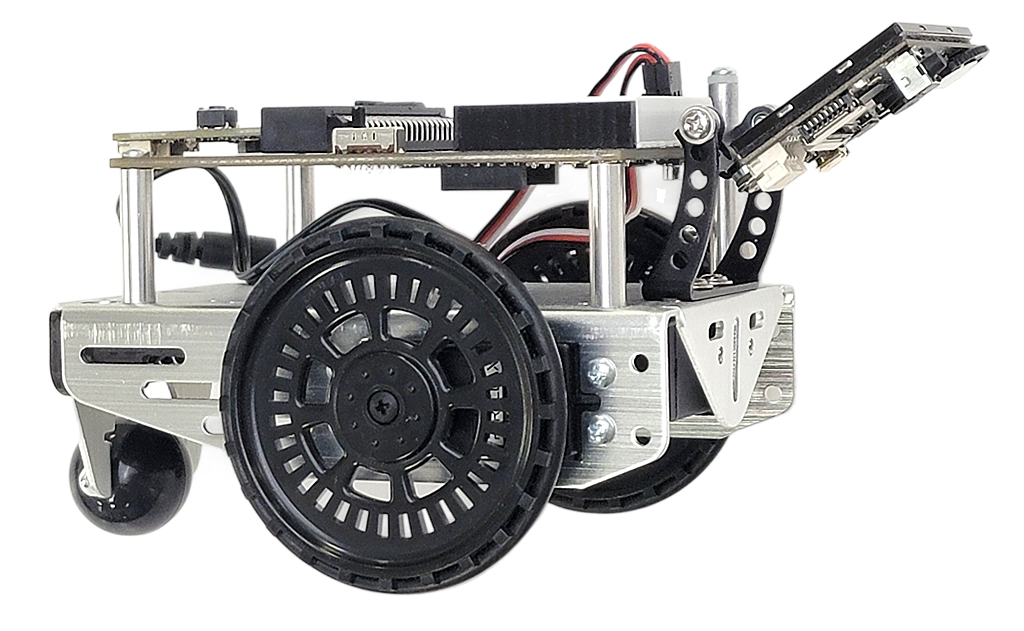

Use the mounting hardware in the Parts section connect the HUSKYLENS to the cyber:bot robot chassis as shown below. Make sure that:

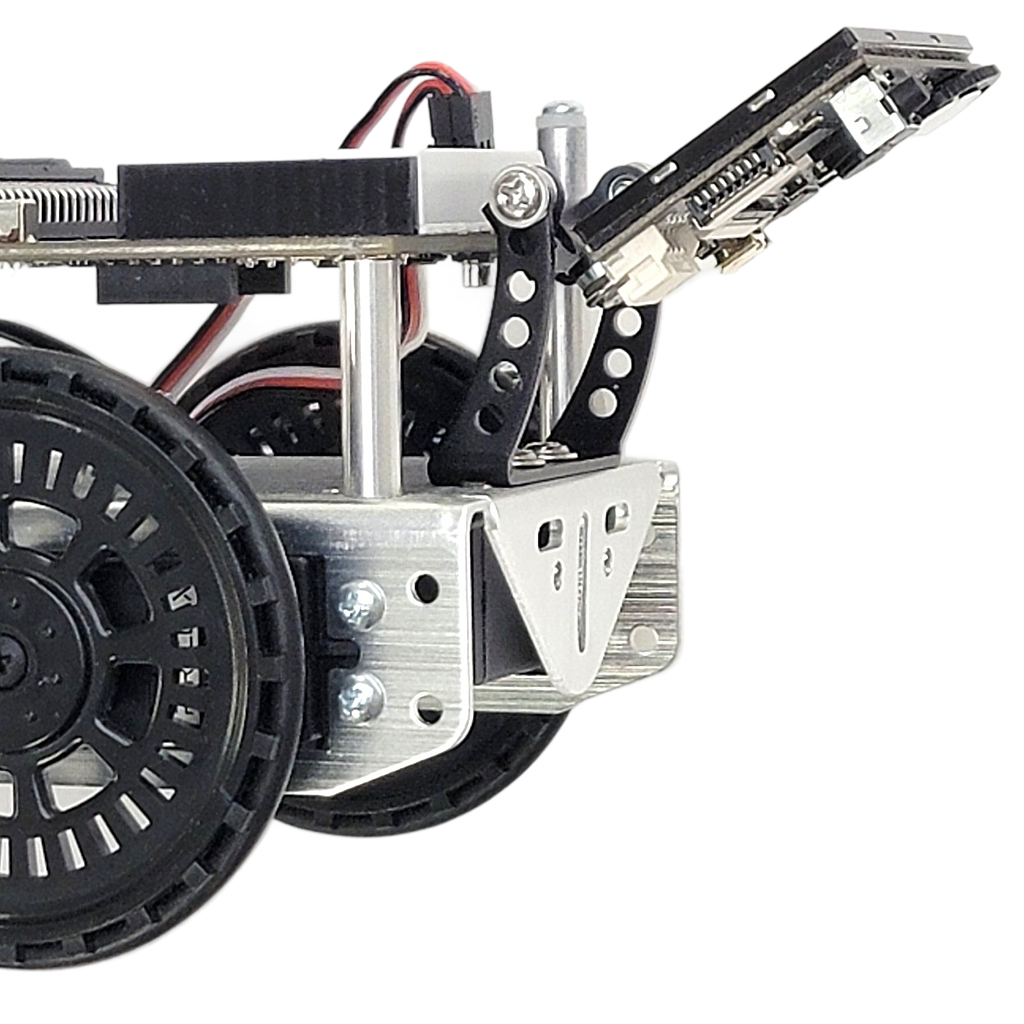

- The lens is facing forward (shown pointing downward at about 45°)
- The viewing screen is facing in the direction of the breadboard.
