PIR Motion
PIR Motion
Parts

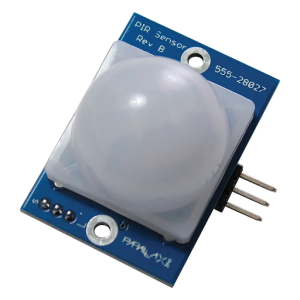

(1) PIR Sensor with LED Signal 555-28027
(1) Resistor – 220 Ω
Jumper wires: red, black

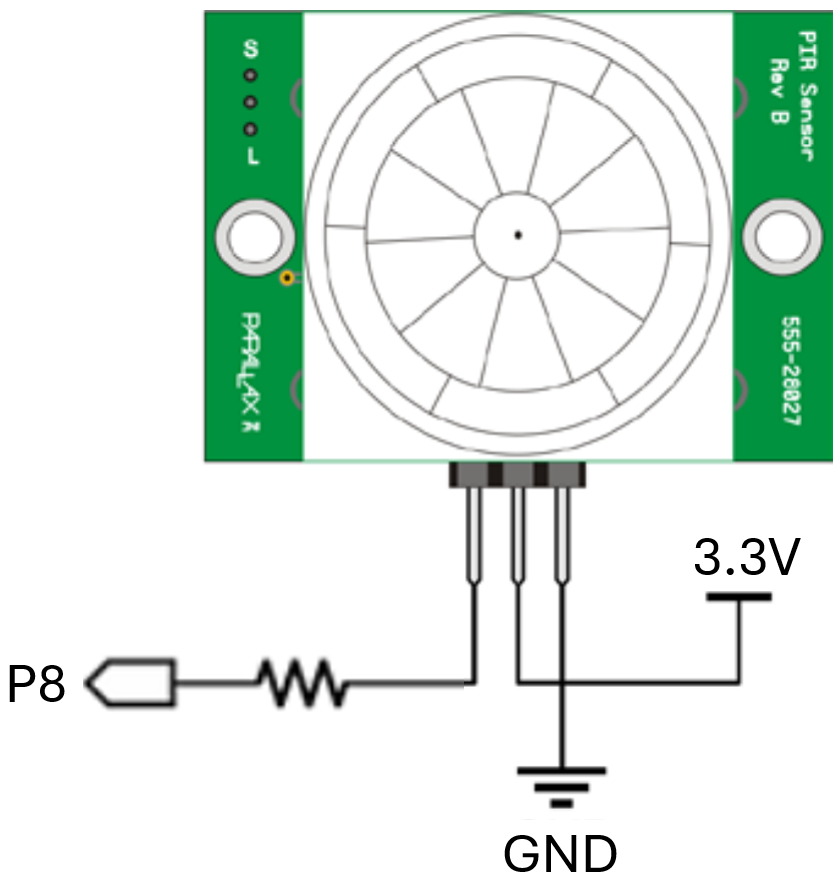

Schematic

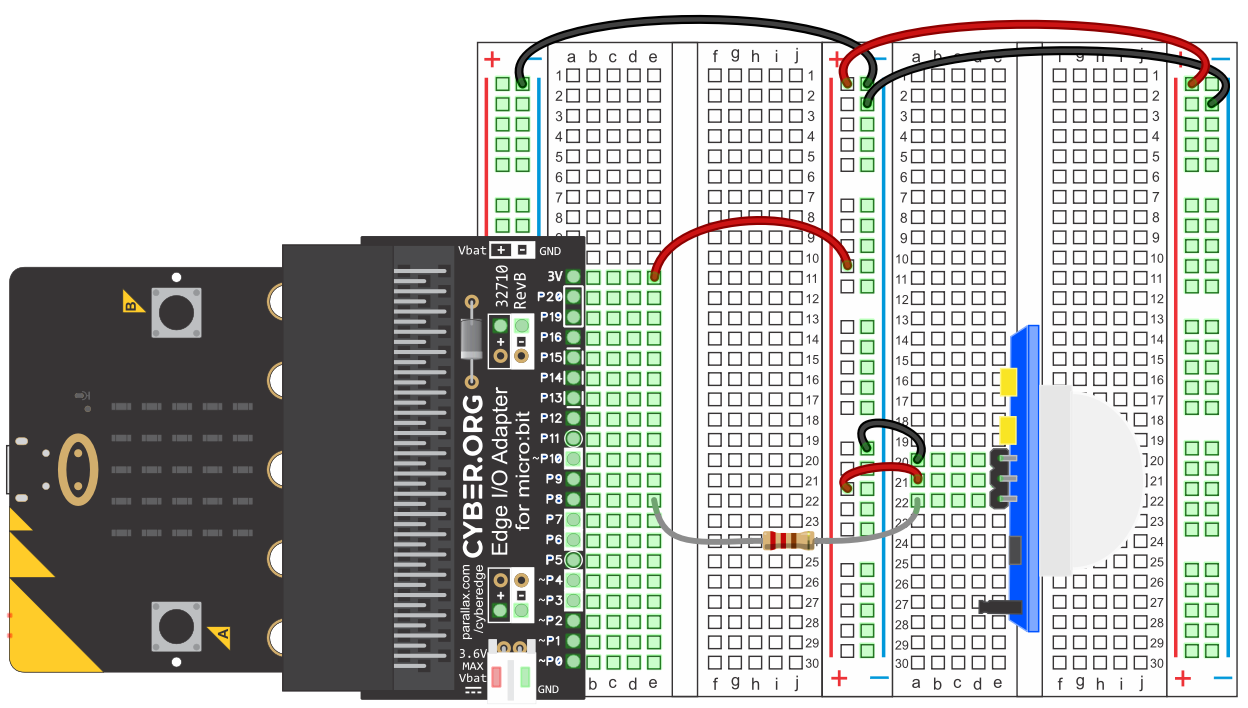

Wiring

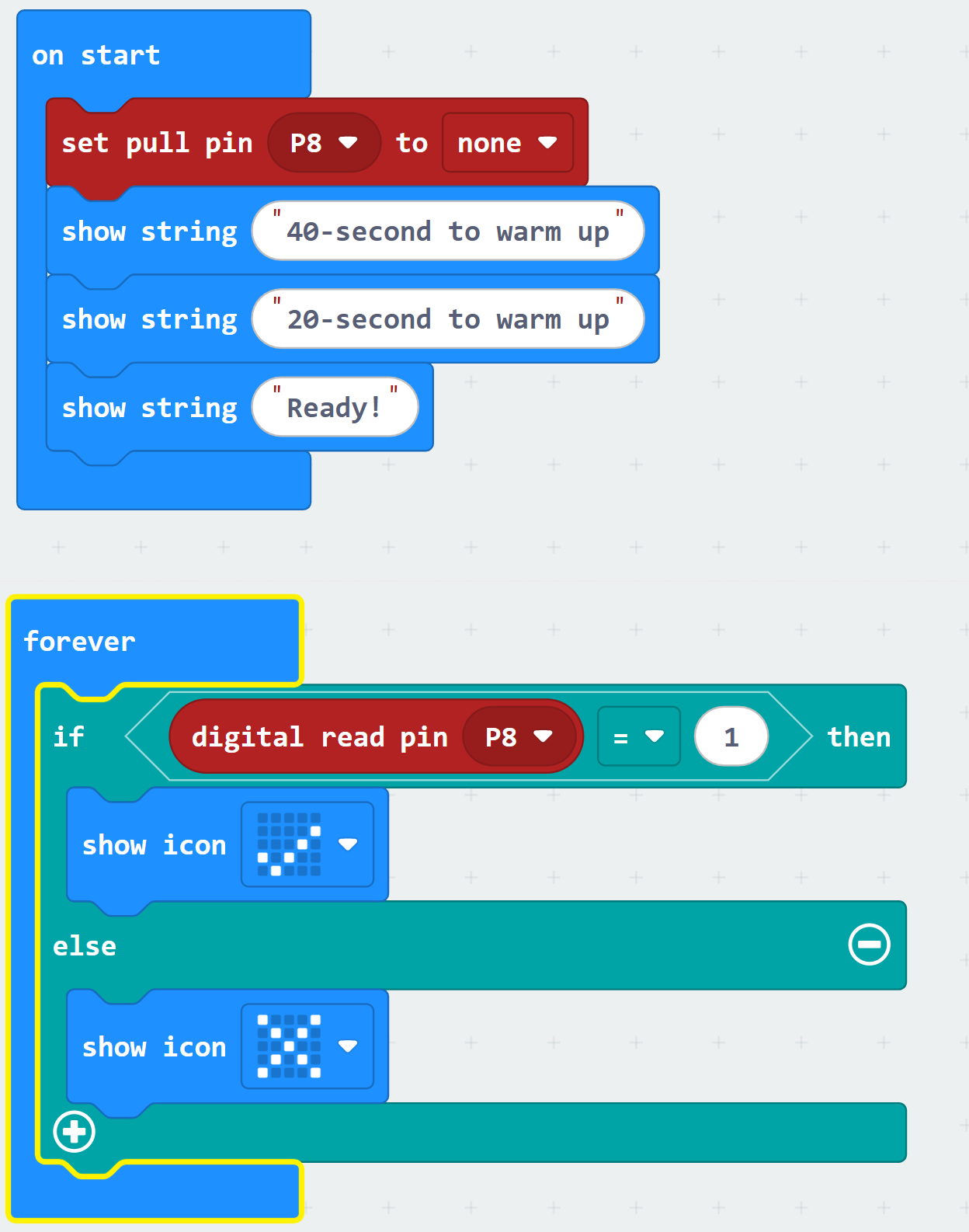

Script
Tests
Verify that the micro:bit’s 5×5 LED matrix display shows the checkmark ✔ for around five seconds after motion is detected. With no motion, it should display an X.
