Attach the Scoop
The scoop is for pushing or flipping your robot opponent during a wrestling match. Note that the slots for attaching the scoop allow it to be positioned slightly higher or lower.
Parts Required for each robot
- Partly assembled robot (not shown)
- (1) SumoBot scoop
- (2) 1/4-inch 4-40 pan-head machine screws
- (2) locknuts

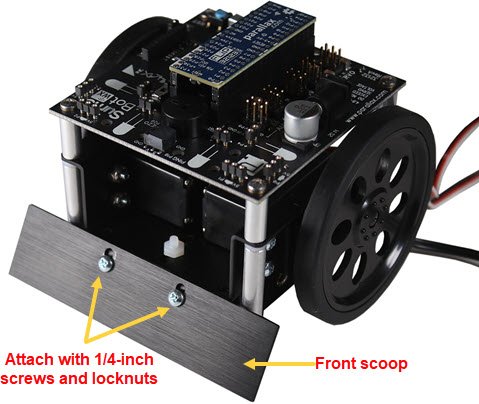

- Using two 1/4-inch screws and two locknuts, attach the scoop to the outside of the scoop mount. The screws go on the outside of the scoop, and the nuts go underneath.
- Carefully center the scoop in the scoop mount’s slots before tightening the screws and nuts.
